M215HTN01.1

NO.M215HTN01.1






[DOWNLOAD]

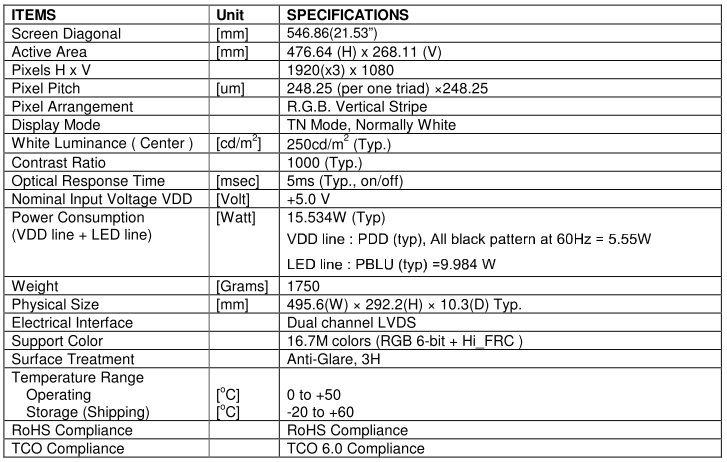

This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HTN01.1The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel LVDS interface and this module doesn’t contain an driver board for backlight.
