T215HVN01.1

NO.T215HVN01.1


[DOWNLOAD]

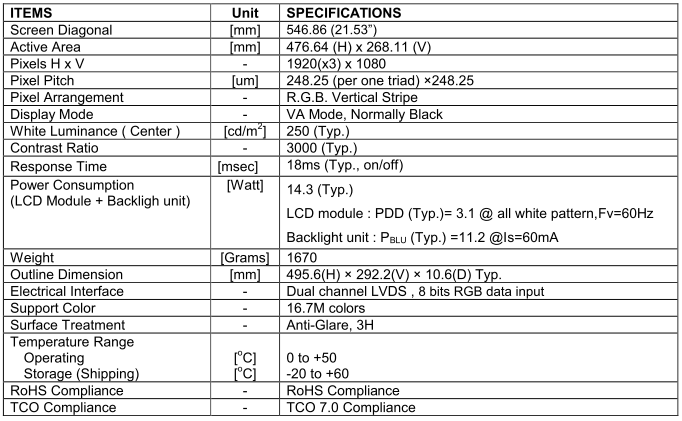

This specification applies to the 21.5 inch wide Color a-Si TFT-LCD Module T215HVN01.1 The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (8 bits RGB data input ). The input interface is Dual channel LVDS and this module doesn’t contain an driver board for backlight.
