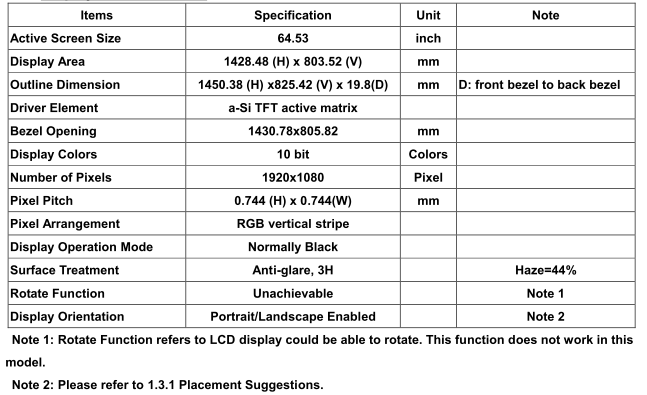

This specification applies to the 65 inch Color TFT-LCD Module P650HVN03.0. This LCD module has a TFT active matrix type liquid crystal panel 1920x1080 pixels, and diagonal size of 64.5 inch. This module supports 1920x1080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.

The  P650HVN03.0  has  been  designed  to  apply  the  10-bit 2  channels  LVDS  interface  method.  It  is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.
